Product Name
|
Working Voltage
|
Specifications
|
0utput voltage
|
|
JKL2B
|
M
|
4
|
DC
|
|
M: 220V
|
4: 4 sets of output circuit
6: 6 sets of output circuit
8: 8 sets of output circuit
10: 10 sets of output circuit
|
Default: Normal
DC: DC12V
|
Ordering Example:

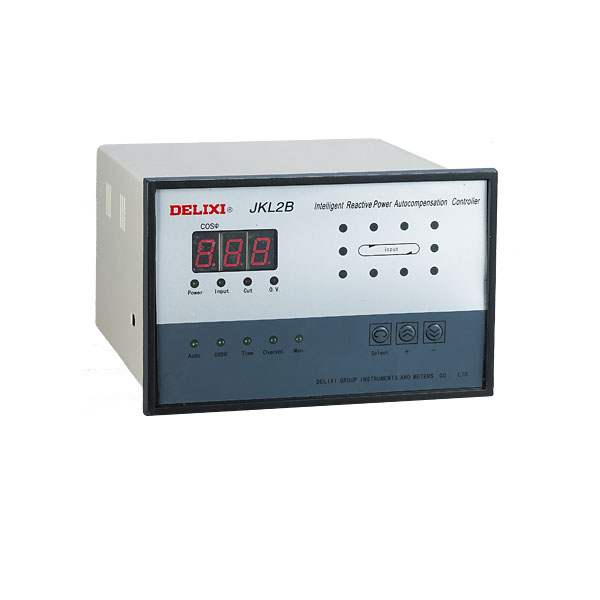

The ordering number for Model JKL2B Intelligent Reactive Power Automatic Compensation Controller of 220V voltage with 4 sets of output circuit and common-use output voltage is JKL2BM4.
■ It is used together with capacitor compensation cabinet to compensate for reactive power. It is applicable to single-phase power grid of 50-60Hz frequency & AC220V rated voltage. It can be used for split-phase compensation.
■ Switch on/off threshold beyond 1.00 power factor, if necessary, for a wider range of application of the product.
■ The circuit setting function enables the user to output circuit number according to actual needs for convenience of his use.
■ Automatic phase detection. Easy and flexible connection for installation, adjustment and a wide range of application occasions.
■The product is controlled by MCU, and over-compensation, under-compensation,over-voltage, under-voltage, under-current and etc. of the power grid can beautomatically displayed and handled.
■ The product has features of strong anti-interference capability and WDT automaticreset for stable and reliable operation.
■ Intelligent software against "invalid switch", which is a design defectof conventional products.

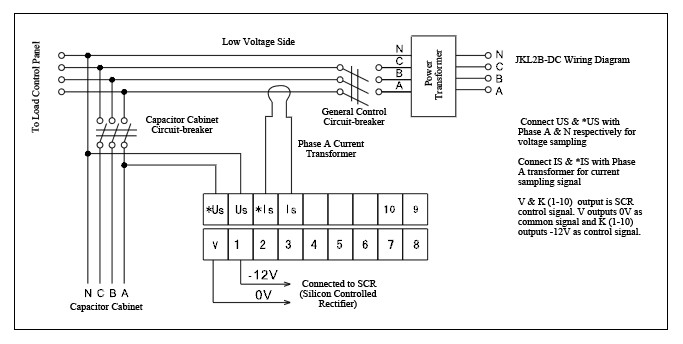

■ DC-output-type products can be selected for "flexible compensation" freefrom impact.
■ Sampling Voltage (V) : 220 ± 15%
■ Sampling Current (A) : n/5A ( Is≤5A )
■ Frequency (Hz) : 50～60
■ Switch On Threshold: 0.80～-0.92
■ Switch Off Threshold: -0.90～0.82
■ Working Method: Continuous Working and Circulative Operation Way
■ Output Circuit Number: 1～10 sets of output circuit (Adjustable)
■ Compensation Method: split-phase compensation
■ Dielectric Strength (V) : Power Frequency 2500
■ Protection Class: Case Protection Class IP30
■ Whole Machine Power (W) : ≤15

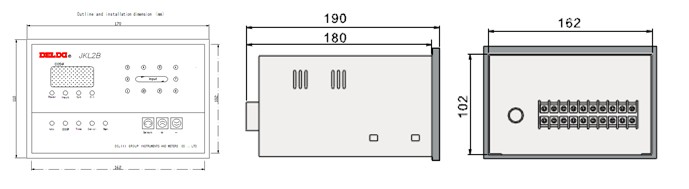

■ Hole size (mm) : 162×102
■ Weight (kg) : ＜ 1.9
