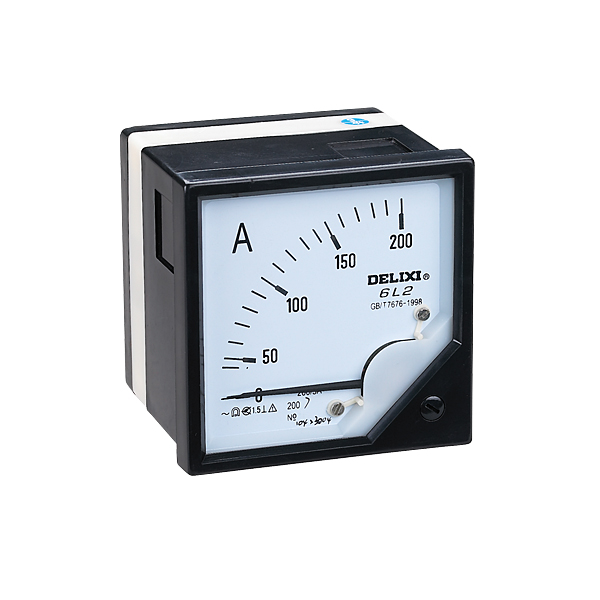

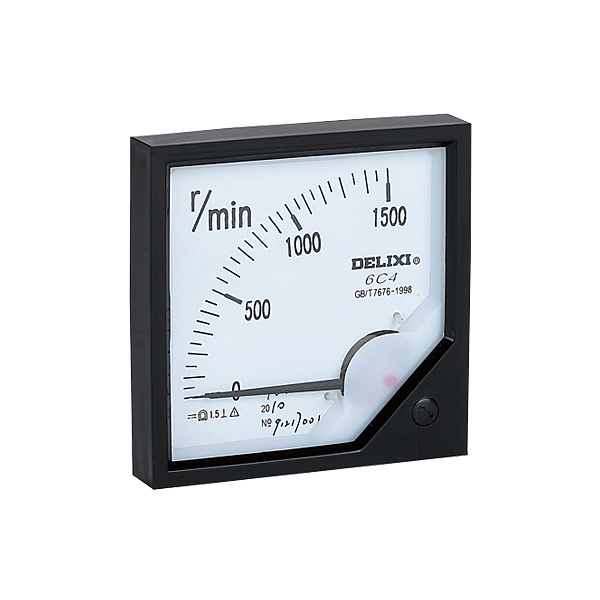

This product contains the following details
| Product name | Input method | Design No. | Type | Range |
| 6 | C | 2 | A | * |
|
6:6 42:42 |
C:DC L:AC |
2:2 |
A: Ammeter |
*:*A (V, Hz, W, var, COSφ) See table of range parameters for details |
| Input Method | Type |
| DC | Ammeter, Voltmeter |
| AC |
Ammeter, voltmeter, Active power meter, Reactive power meter, Frequency Meter, power factor meter |
Range Parameter Table
| Product type | Type | Range | Accuracy class |
| DC Ammeter |
6C2-A |
Connect directly to 50μA～500μA |
Class 1.5 Class 2.5 |
| Connect directly to 1mA～500mA | |||
| Connect directly to 1A～20A | |||
| Connect to 5A～10kA via external shunt | |||
| DC voltmeter |
6C2-V |
Connect directly to 3V～600V | |
| Connect to 750V～1.5kV via external resistant | |||
| AC Ammeter |
6L2-A 42L6-A |
Connect directly to 0.1A～50A | |
| Connect to 5A/5A～10kA/5A via 5A Secondary CT | |||
| AC voltmeter |
6L2-V 42L6-V |
Directly connect to 3V～600V | |
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | |||
| Frequency Meter |
6L2-Hz 42L6-Hz |
45Hz～55Hz 55Hz～65Hz 45Hz～65Hz |
Class 1.0
|
| 100V 220V 380V | |||
|
Active power meter Reactive power meter |
6L2-W 42L6-W |
Connect directly to voltage100V 220V 380V | Class 2.5 |
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | |||
|
6L2-var 42L6-var |
Connect directly to current5A | ||
| Connect to 5A/5A～10kA/5A via 5A Secondary CT | |||
| Three-phase power factor meter |
6L2-COSφ 42L6-COSφ |
0.5 (lead) ～1～0.5 (lag) | |
| 100V/5A 220V/5A 380V/5A |
Note: For DC ammeters, the directly-connected current range of Type 6C4 is 1A～10A and 1A～20A is for Type 6C2 and 42C3.
Order Information:
The ordering code for Type 42 pointer panel meter (AC input, ammeter) is 42L6A*.
■ Display variation trend of measured object and easy to read.
■ Power meter and power factor meter do not need to be used with external changers.
■ Bolt-fixed Installation
■ Gripping Installation
| International Standard | IEC 51-1~9 |
| National Standard | GB/T 7676.1~9 |
| Industrial Standard | JB/T 9281, JB/T 9282 |
| Withstand Voltage Test | Frequency: 50Hz, voltage: 2000V, lasting time: 1min |
| Resistance to mechanical shock | Max. speed: 147m/s2 |
| Responding time | ≤4S |
| Deflection angle of pointer | 90° |

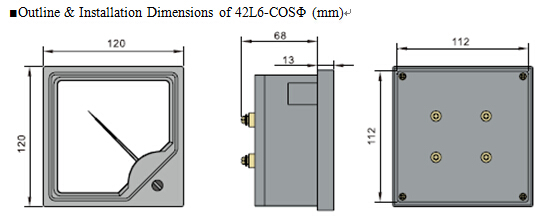

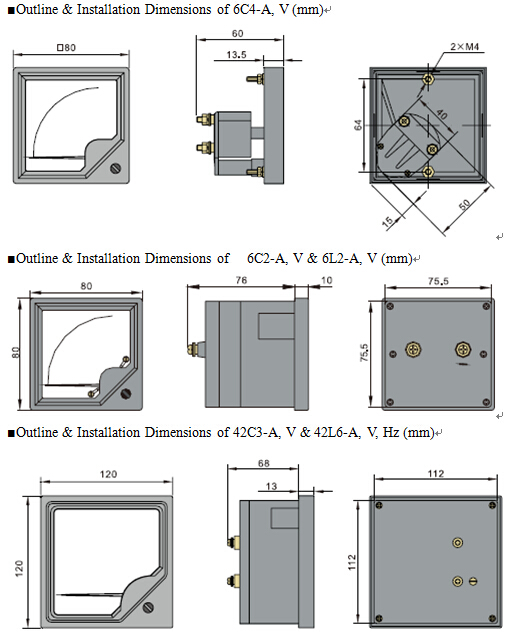

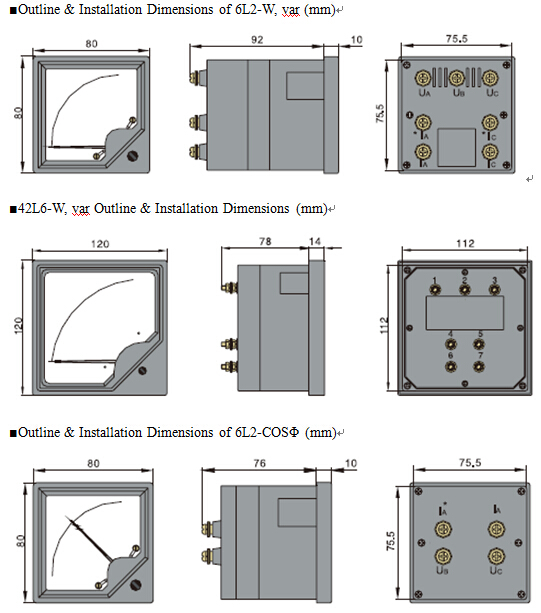

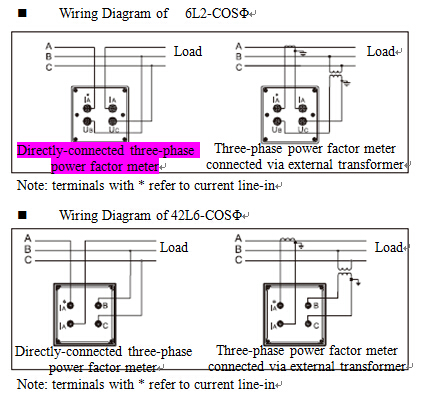

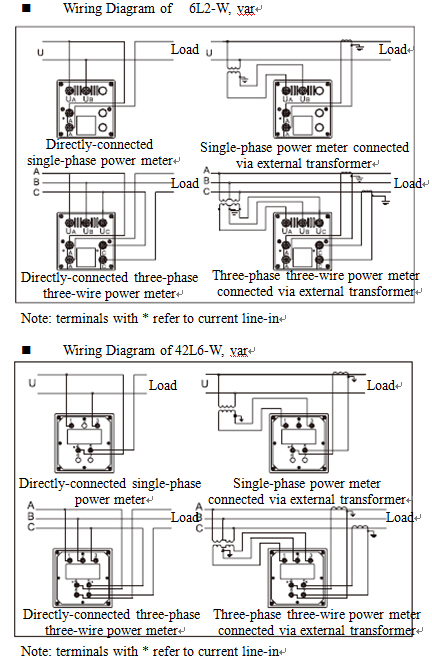

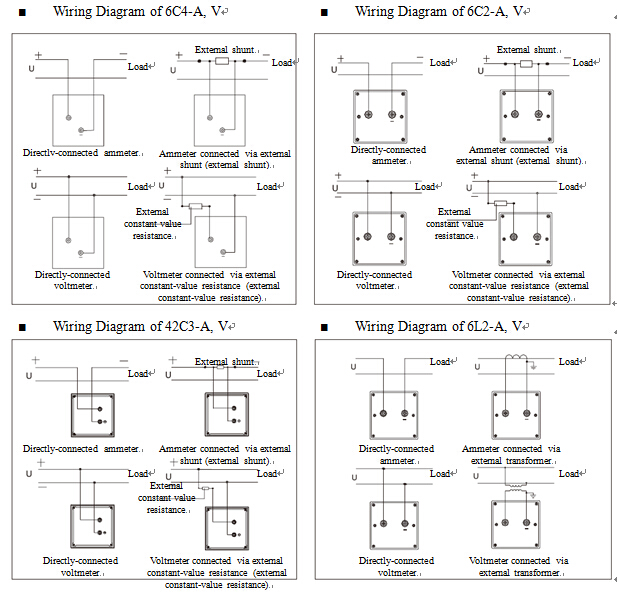

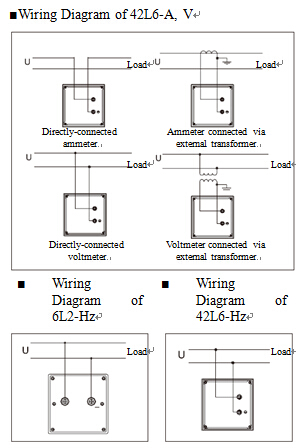

Wiring Diagram
